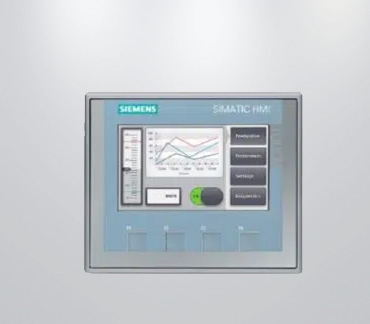

KTP400 Series
KTP400 Series
- Display: 4.3 inch TFT, 64K colors, 480 x 272 px resolution.
- Control: Touch screen and 4 function keys.
- Memory: 10 MB user memory.
- Interfaces: PROFINET RJ 45 Ethernet, USB host.
- Dimensions: Installation cutout 123 x 99 mm, front panel 141 x 116 mm, depth 43 mm.
- Software: WinCC Basic (TIA Portal) V13+.
- Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, 50 recipes, archiving
