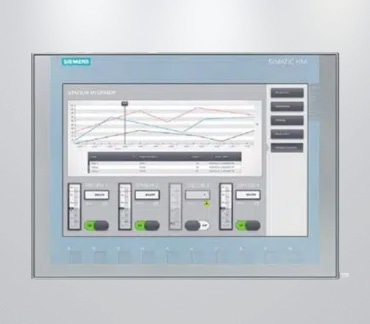

KTP900 Series
KTP900 Series
- Display: 9 inch TFT, 64K colors, 800 x 480 px resolution.
- Control: Touch screen and 8 function keys.
- Memory: 10 MB user memory.
- Interfaces: 1 x RJ 45 Ethernet for PROFINET, 1 x USB host.
- Protection: IP 65/NEMA 4x front, IP 20 rear.
- Dimensions: Installation cutout 251 x 166 mm, front panel 267 x 182 mm, depth 47 mm.
- Functionality: 1000 messages, 100 process screens, 800 tags, vector/bar graphics, curve diagrams (f(t)), 50 recipes, archiving.
